| SatellitePlus® L-Band Optical Transport | |||||
The
SatellitePlus® L-Band Optical Transport System is a robust,
feature-rich and cost-effective integrated family of products which provides a high
performance alternative to coaxial cable for transmission of 10MHz to
4000MHz RF signals. Applications include L-Band satellite antenna
remoting, trunking radio, telemetry tracking and time and frequency
reference distribution. The extended frequency range of 3-4GHz
allows this system to accommodate additional transponders coinciding
with common European satellite communication applications. The enhanced
bandwidth also facilitates stacked LNB applications to accommodate
additional transponders containing enhanced DBS programming services
(i.e., HDTV, local channels, etc.) over singlemode fiber for DBS
television distribution in campus, fiber-to-the-premise (FTTx) and
multiple dwelling unit (MDU) environments. Most L-Band receivers are now available with optional high-sensitivity APD
detectors. Compared to PIN detector-based receivers, APD's typically improve optical sensitivity by 6dB or more. At low light levels, they can boost SNR and gain up to 20dB.
Contact Olson Technology, Inc. for Data Sheets or Operating Manuals not available from this page. |
|||||

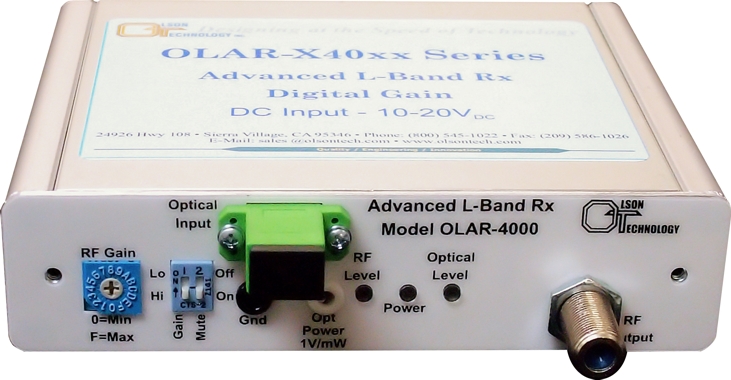

| SatellitePlus® Model OLAT/OLAR Advanced 4.0GHz L-Band System |  Model OLAR Advanced L-Band Receiver |
||||
|
The SatellitePlus® Model OLAT/OLAR 4.0GHz Advanced L-Band System transmits 10MHz to 4,000MHz RF signals. This feature-rich link offers digital gain control over a 25dB range. The units may be specified for 1310nm, 1550nm, CWDM and DWDM wavelengths. The transmitters offer a 13/17V programmable LNB power option. Both the transmitter and receiver offer built-in test points, LED indicators and alarms for easy installation and system maintenance. The units are available in standalone or rackmount configurations. |
|||||

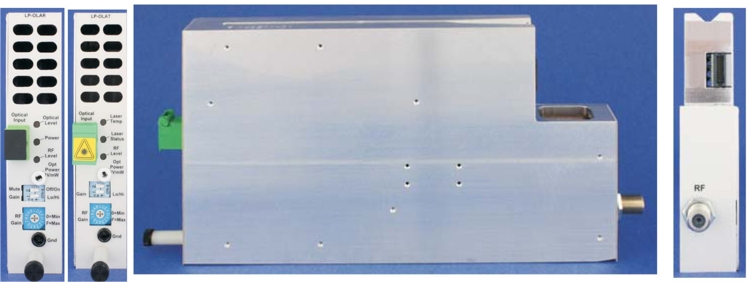

| LaserPlus® Model LP-OLAT and LP-OLAR Advanced 4.0GHz L-Band Link |  Model LP-OLAT & LP-OLAR Advanced 4.0GHz L-Band Link |
||||
|
The LaserPlus® Model LP-OLAT/LP-OLAR 4.0GHz Advanced L-Band Transmitter and Receiver transmit 10MHz to 4,000MHz RF signals. The receiver offers high or low gain options, and works with any Olson Technology, Inc. L-Band transmitter in the 1270-1610nm wavelength range. The receiver has a wide optical input range of -15 to +3dBm and may be ordered with SC/APC or FC/APC optical connectors. The Model LaserPlus® Advanced L-Band link is packaged in a rack-mount enclosure for use in the LaserPlus® 3RU chassis. Advanced L-Band receivers are now available with optional high-sensitivity APD detectors. APD's typically improve sensitivity by 6dB or more. At low input light levels, APD's offer up to 20dB better SNR and 20dB more gain compared to PIN detector receivers. |
|||||
|
SatellitePlus®

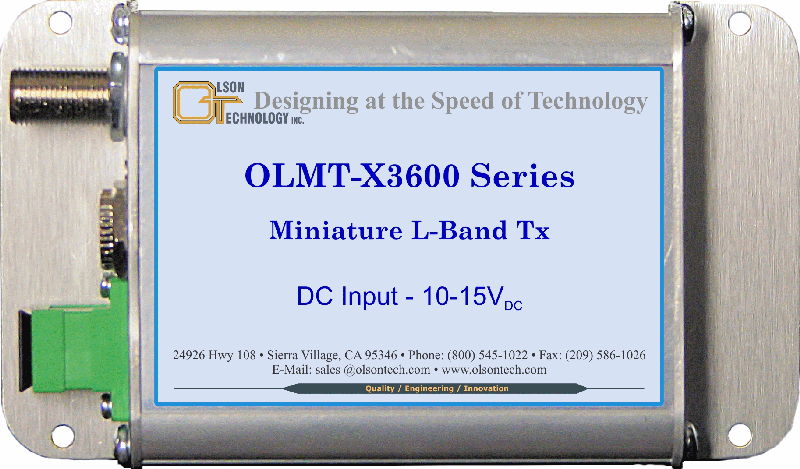

Model OLMT Miniature 3.6GHz L-Band Transmitter
|
 Model OLMT Miniature L-Band Transmitter |
||||
|
The SatellitePlus® Model OLMT 3.6GHz Miniature L-Band Transmitter transmits 10MHz to 3,600MHz RF signals. The transmitter works with all Olson Technology, Inc. L-Band receivers. The transmitter is available with 1310nm, 1550nm, and CWDM DFB lasers and may be ordered with SC/APC or FC/APC optical connectors. The OLMT is also available with 75 Ohm "F" connectors or 50 Ohm SMA connectors. The Model OLMR is packaged in a miniature enclosure for standalone installations. |
|||||

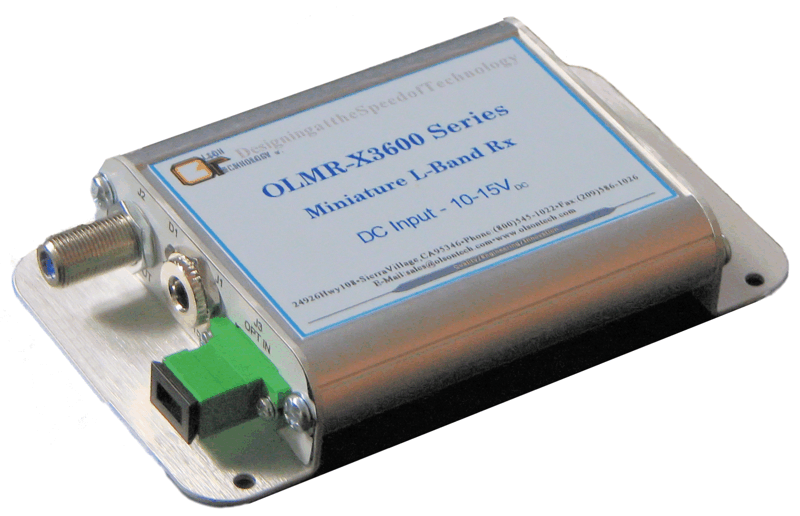

| SatellitePlus® Model OLMR Miniature 3.6GHz L-Band Receiver |  Model OLMR Miniature L-Band Receiver |
||||
|
The SatellitePlus® Model OLMR 3.6GHz Miniature L-Band Receiver transmits 10MHz to 3,600MHz RF signals. The receiver offers high or low gain options, and works with any Olson Technology, Inc. L-Band transmitter in the 1270-1610nm wavelength range. The receiver has a wide optical input range of -15 to +3dBm and may be ordered with SC/APC or FC/APC optical connectors. The Model OLMR is packaged in a miniature enclosure for standalone installations. OLMR receivers are now available with optional high-sensitivity APD detectors. APD's typically improve sensitivity by 6dB or more. At low input light levels, APD's offer up to 20dB better SNR and 20dB more gain compared to PIN detector receivers. |
|||||

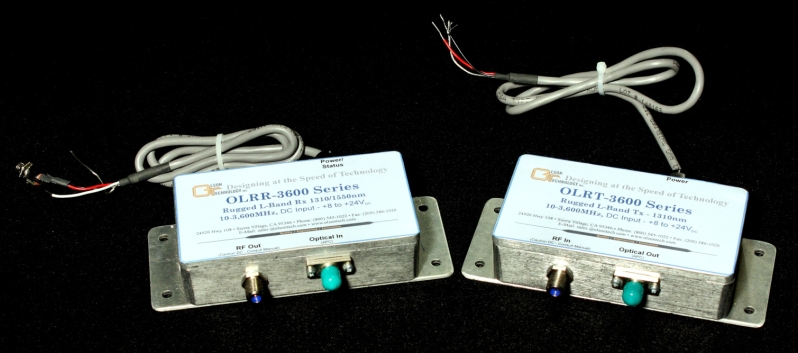

| SatellitePlus® Model OLRT/OLRR Rugged 3.6GHz L-Band Fiber Optic Link |
Model OLRT/OLRR L-Band Transport |
||||
|
The SatellitePlus® Model OLRT/OLRR Rugged 3.6GHz L-Band Optical Transport Link transmits 10MHz to 3,600MHz RF signals. The link offers high or low gain, and can be specified for 1310nm, 1550nm, or CWDM wavelengths. The transmitters offer remote LNB powering, and the link is configured in a rugged standalone enclosure. Rugged L-Band receivers are now available with optional high-sensitivity APD detectors. APD's typically improve sensitivity by 6dB or more. At low input light levels, APD's offer up to 20dB better SNR and 20dB more gain compared to PIN detector receivers. |
|||||
|
|||||
