| Passive Optics, Power Supplies, SFP Modules | |||||||
| Power Supplies | Misc Accessories | ||||||
| SFP Modules | Coupler/Splitter | ||||||
| Optical Splitters/Couplers operate over a wide wavelength range and can specified in 1 X N up to 1 X 32. | |||||||
| WDMs | CWDMs | ||||||
| Wavelength-division Multiplexers (WDMs) operate in the 1310/1550nm wavelength range and can combine two optical signals on one fiber. | Coarse Wavelength-division Multiplexers (CWDMs) operate in the 1470nm to 1610nm wavelength range and can combine up to eight optical signals on one fiber. | ||||||
| DWDMs | |||||||
| Dense Wavelength-division Multiplexers (DWDMs) operate in the 1528nm to 1568nm wavelength range and can combine up to 32 optical signals on one fiber. | |||||||
| Contact
Olson Technology, Inc. for Data Sheets or Operating Manuals not
available from this page.
|
|||||||
| Model OTPS Universal AC to DC Power Supply |  Model OTPS Universal AC to DC Power Supply |
||||||
|
The Olson Technology, Inc. OTPS universal AC-to-DC power supply series is an economical and reliable means of powering many Olson products. It provides 18 Watts of DC output power in a compact package that includes a green power LED. It provides overload protection, over-voltage protection and short-circuit protection. It is intended for strictly indoor applications. Olson currently offers +12 Volt / 1.5 Amp version and a +18 Volt / 1.0 Amp versions of the OTPS power supply. Safety approvals include UL, CE, FCC. The power supply meets the EMC requirements of FCC part 15. Connector options include the 2.1mm/5.5mm DC power connector as well as 4-pin Phoenix connectors and 4-pin Weidmuller connectors. A PIC (three-port Power Inserter Coupler) is available to power devices remotely via an "F" connector where RF signals and power are on the same cable. For direct powering of devices with separate "F-connector" power input ports without RF signals, the OTPS-12A-F, with only the F-connector adapter is used. The 18 Volt version is used for specialty LNB powering options when used with Olson L-Band products. |
|||||||
| Model OTOA-1000 1310nm Optical Attenuator |
Model OTOA-1000 Optical Attenuator |
||||||
|
The Model OTOA-1000 provides 1dB though 7dB of step-variable attenuation (i.e., @ 1dB steps) for 1310nm signals via standard simplex 9/125µm 3mm yellow non-plenum riser jacketed single-mode fiber cable. Results may vary with other wavelengths and types of fiber cable. The OTOA-1000 is the perfect companion to the Olson Technology, Inc. PremiseNode Models OTPN-x and MetroNode Models OTMN-x optical node/receiver product families, but is also designed to operate with optical node/receivers from most leading manufacturers. |
|||||||
| Single Mode 1310nm, 1550nm and CWDM 1.25Gb/s SFP Transceivers |  Model OTOLS-13, OTOLS-15 & OTOLS-CW SM SFP Transceiver |
||||||
|
The Model OTOLS-13, OTOLS-15 and OTOLS-CW small form pluggable
(SFP) transceivers operate at 1.25Gb/s and are compatible with gigabit
Ethernet and 1000BASE-T standards. The link uses a two-wire serial
communication protocol based on current industry requirements. The compact
metallic enclosure includes a standard LC connector and can be ordered for
1310nm, 1550nm, or CWDM transport. The transceiver may be used for
bidirectional data links up to 1.25GB/s or switch-to-switch interfaces and
router/server interfaces and can be ordered to operate up to 30km (1310nm),
80km, or 120km (1550nm) over single-mode fiber. The CWDM version
allow up to eighteen (18) units to operate on one
single-mode fiber.
All SFP modules now include Digital
Diagnostic Monitoring (DDM).
|
|||||||
| Single Mode Single Fiber Bidirectional SFP 1.25Gb/s Transceiver |  Model OTOLS-BIYY-ZZ SM Bidirectional SFP Transceiver |
||||||
|
The Model OTOLS-BIYY-ZZ small form
pluggable (SFP) bidirectional transceiver operates at 1.25Gb/s and is
compatible with gigabit Ethernet and 1000BASE-T standards. The link uses a
two-wire serial communication protocol based on current industry
requirements. The compact metallic enclosure includes a standard SC/UPC
connector. The transceiver uses 1310nm, 1490nm, or 1550nm for transmission in one direction
and 1310nm, 1490nm, or 1550nm for transmission in the other direction. The transceiver may be
used for bidirectional data links up to 1.25GB/s over single-mode
fiber. All SFP modules now include Digital
Diagnostic Monitoring (DDM).
|
|||||||
| Model OTCP-X 1xN Optical Coupler/Splitter |
Model OTCP-X Optical Coupler/Splitter |
||||||
|
The Model OTCP-X is a low-cost, high performance family of passive optical coupler/splitter products that provide a protective, enclosed environment for fiber splitting, as well as network testing and real-time monitoring, in CATV, HFC or PON broadband applications. The unit utilizes ultra-reliable Fused Biconic Taper (FBT) technology that meets or exceeds its performance specifications over a wide temperature range and to deliver long-term reliability. Compliant with Telcordia Bellcore 1221 & 1209, OT couplers are subjected to thermal cycling and tested for insertion loss, back reflection and bandpass. |
|||||||
| Model OT-WDM-35H High Isolation WDM |
Model OT-WDM-35H High Isolation WDM |
||||||
|
The Model OT-WDM-35H operates at 1310/1550nm center wavelengths and provides low insertion loss (0.75dB max.) and very high isolation (30dB typ.; 40dB in 10nm BW). |
|||||||
| Model OT-WDM-35U Ultra High Isolation WDM |
Model OT-WDM-35U Ultra High Isolation WDM |
||||||
|
The Model OT-WDM-35U operates at 1310/1550nm center wavelengths and provides low insertion loss (1.1dB max.) and very high isolation (30dB typ.; 60dB in 10nm BW). |
|||||||

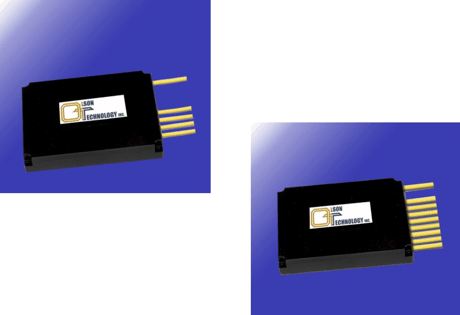

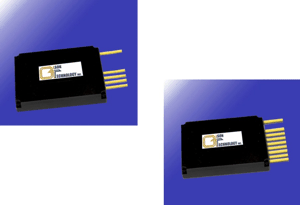

| Model OT-CWDM-X 2, 4 or 8 Channel CWDM |
Model OT-CWDM 2, 4- or 8-Channel CWDM |
||||||
|
The Model OT-CWDM-X 2-channel, 4-channel or 8-channel CWDM allows two, four or eight optical signals to be combined on one fiber. The units offer low insertion loss (0.65dB for teh 2-channel CWDM, 2.0dB for the 4-channel CWDM , or 3.6dB, for the 8-channel CWDM.) |
|||||||
| Model OT-SWDM-AD CWDM Add-Drop Module |
Model OT-SWDM-AD CWDM Add/Drop Module |
||||||
|
The Model OT-SWDM-AD operates with standard 1310nm or 1550nm wavelengths to allow signals to be added or dropped from a CWDM network. The Model OT-SWDM-AD also allows the user to configure the network to include bi-directional communication. |
|||||||
| Model OT-DWDM-X-X 4, 8, 16, or 32 Channel DWDM |
Model OT-DWDM 8-, 16-, or 32-Channel DWDM |
||||||
|
The Model OT-DWDM-X-X 4, 8, 16, or 32 channel DWDM allows up to 32 optical signals to be combined on one fiber. The units offer low insertion loss (1.8dB for the 4-channel DWDM). |
|||||||
| Model OT-DWAD 100 GHz DWDM Add-Drop Multiplexer |
Model OT-DWAD DWDM Add/Drop Module |
||||||
|
The Model OT-DWAD operates with standard 1310nm or 1550nm wavelengths to allow signals to be added or dropped from a DWDM network. The Model OT-DWAD also allows the user to configure the network to include bi-directional communication. |
|||||||
| Model OTCP-2CWDM1310-SA 1310nm/C-Band Separator |
 Model OTCP-2CWDM1310-SA C-Band Separator |
||||||
|
Olson's 1310nm/C-Band separator can be used in a number of applications, including: fiber-to-the-home (FTTH), local loops, passive optical networks (PONs), fiber optic CATV and communications networks, fiber optic testing and sensing, and local area networks (LANs). The device combines or separates light at 1310nm (pass channel) and the C-Band and L-Band wavelengths (pass channel). The OT-2CWDM1310 offers low insertion loss (0.8dB pass channel, 0.7dB reflect channel), and excellent isolation (35dB pass channel, 16dB reflect channel. |
|||||||
|
|||||||
